X Series N400 System
The X-N400 SYSTEM is a 1 motion, 1 step control solution for a single function control hoist applications.
- Operating Voltage 90 – 460 VAC / 90 – 460 VDC
- AAA Alkaline Transmitter Batteries Included
- 900MHz FCC, IC and CE Compliant
- IP 65, PA6 Nylon – 30% Glass Filled Enclosure

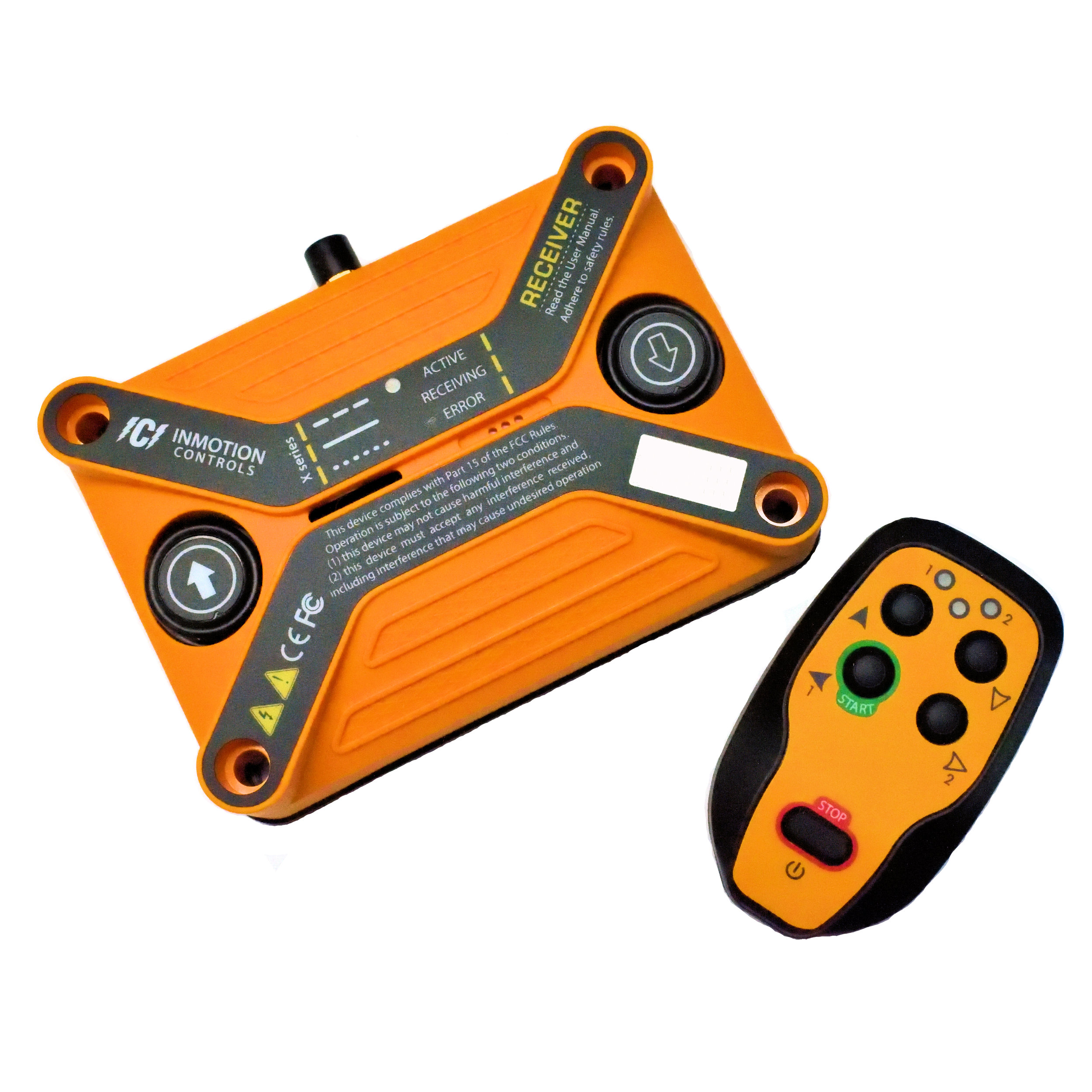

Each system includes one receiving unit, two transmitters with lanyards, batteries, mounting hardware and installation instructions.
| TRANSMITTER (X-N400 TX) | |
|---|---|
| Frequency | 2.4 GHz |
| Modulation Method | LoRa |
| Typical Operating Range | 300 feet (100 Meters) |
| Power Supply | 2 X 1.5V Alkaline “AAA” Battery |
| Average Power Consumption | 16mA @ 3VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 3.11” x 1.8” x 0.93” |
| RECEIVING UNIT (X-N400 RU) | |
|---|---|
| Frequency | 2.4 GHz |
| Control System | PLL |
| Power Supply | 90 – 460 VAC, 90 – 460 VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 8.7” x 3.4” x 1.31” |
| Weight | Approx. 7.76 ounces |
| Installation and Mounting | Four Bolts |
Accessories
The following accessories are available for purchase:
