N Series HV-KN400 Mini System
The HV-KN400 SYSTEM is a 2 motion, 1 step control solution for a dual function control or monorail applications.
- 433Mhz Multi-frequency with Auto Selection
- Bi-directional Communication
- Operating Voltage 12 – 24 VDC
- IP 65, PA6 Nylon – 30% Glass Filled Enclosure
Each system includes one receiving unit, two transmitters with lanyards, batteries, mounting hardware and installation instructions.

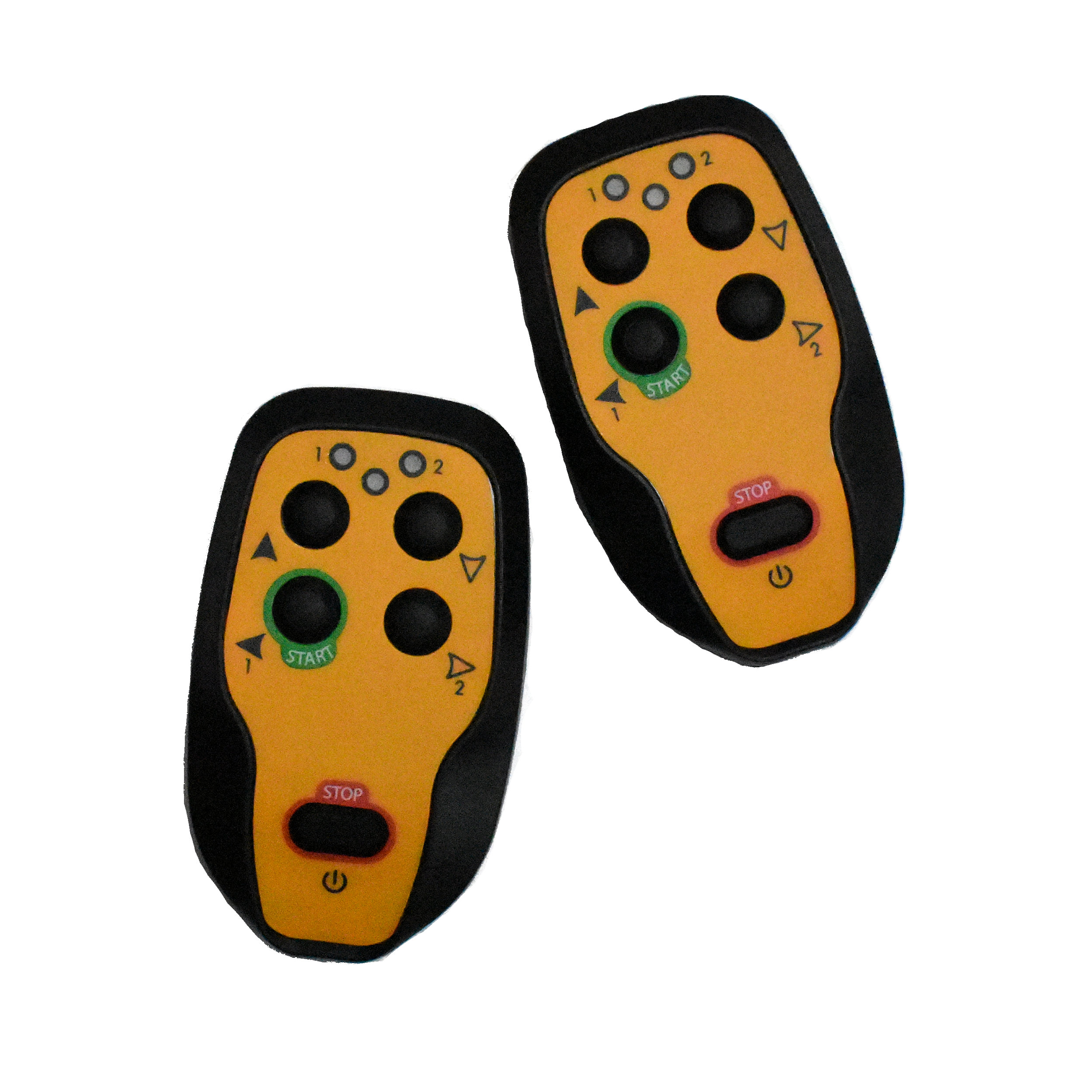

| TRANSMITTER (HV-KN400 TX) | |
|---|---|
| Frequency | 433 MHz |
| Modulation Method | 4FSK |
| Typical Operating Range | 300 feet (100 Meters) |
| Power Supply | 2 X 1.5V Alkaline “AAA” Battery |
| Average Power Consumption | 16mA @ 3VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 3.11” x 1.8” x 0.93” |

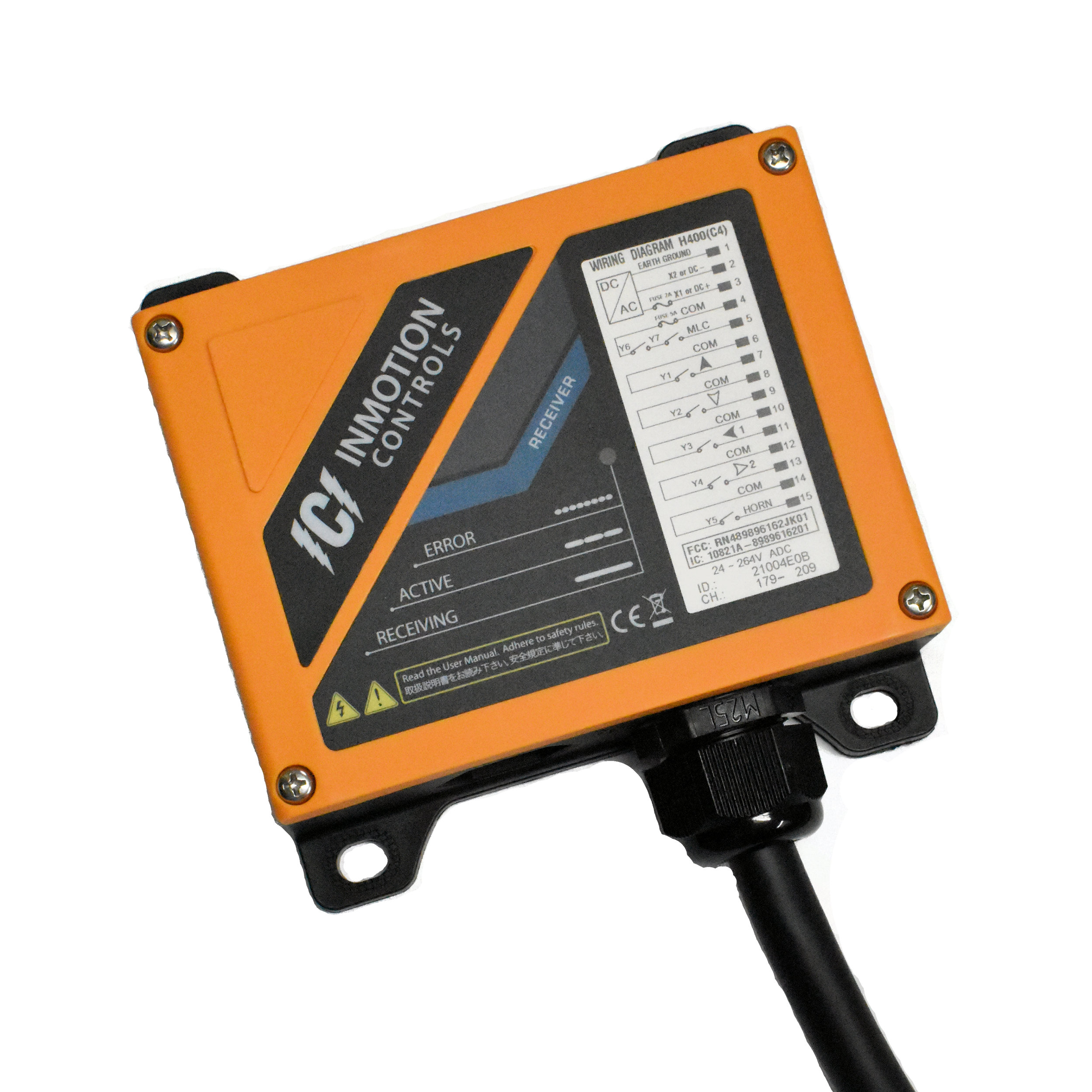

| RECEIVING UNIT (HV-KN400 RU) | |
|---|---|
| Frequency | 433 MHz |
| Control System | PLL |
| Power Supply | 12 – 24 VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 8.7” x 3.4” x 1.31” |
| Weight | Approx. 7.76 ounces |
| Installation and Mounting | Single Bolt, Spring Mount |
Accessories
The following accessories are available for purchase:
