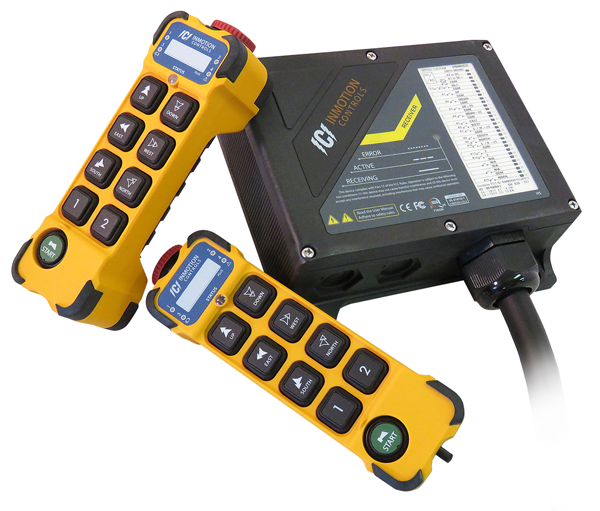

K Plus Series K806 Plus System
The K806-PLUS SYSTEM is a 3 motion, 2 step control solution for a multi-function control or bridge, hoist and trolley applications requiring 1 / BOTH / 2 operations for multiple hoist / trolley.
Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.
| TRANSMITTER (K202- K808 PLUS) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Modulation Method | 2GFSK |
| Typical Operating Range | 300 feet (100 Meters) |
| Power Supply | 2 X 1.5V NiMH “AA” Battery |
| Average Power Consumption | 38mA @ 2.5VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 193mm x 57mm x 51mm |

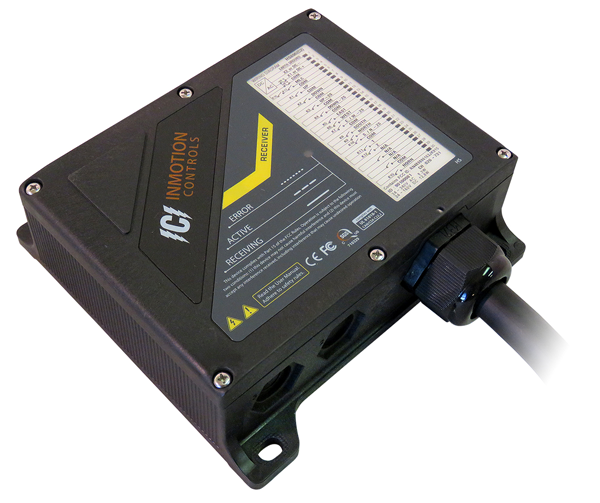

| RECEIVING UNIT (K202- K808 PLUS) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Control System | PLL |
| Power Supply | 24 – 240 VAC / 24 – 160 VDC (auto-sensing) |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 190mm x 184mm x 64mm |
| Installation and Mounting | Single Bolt |
Accessories
These accessories are available for purchase:
