K Series K600-SYSTEM

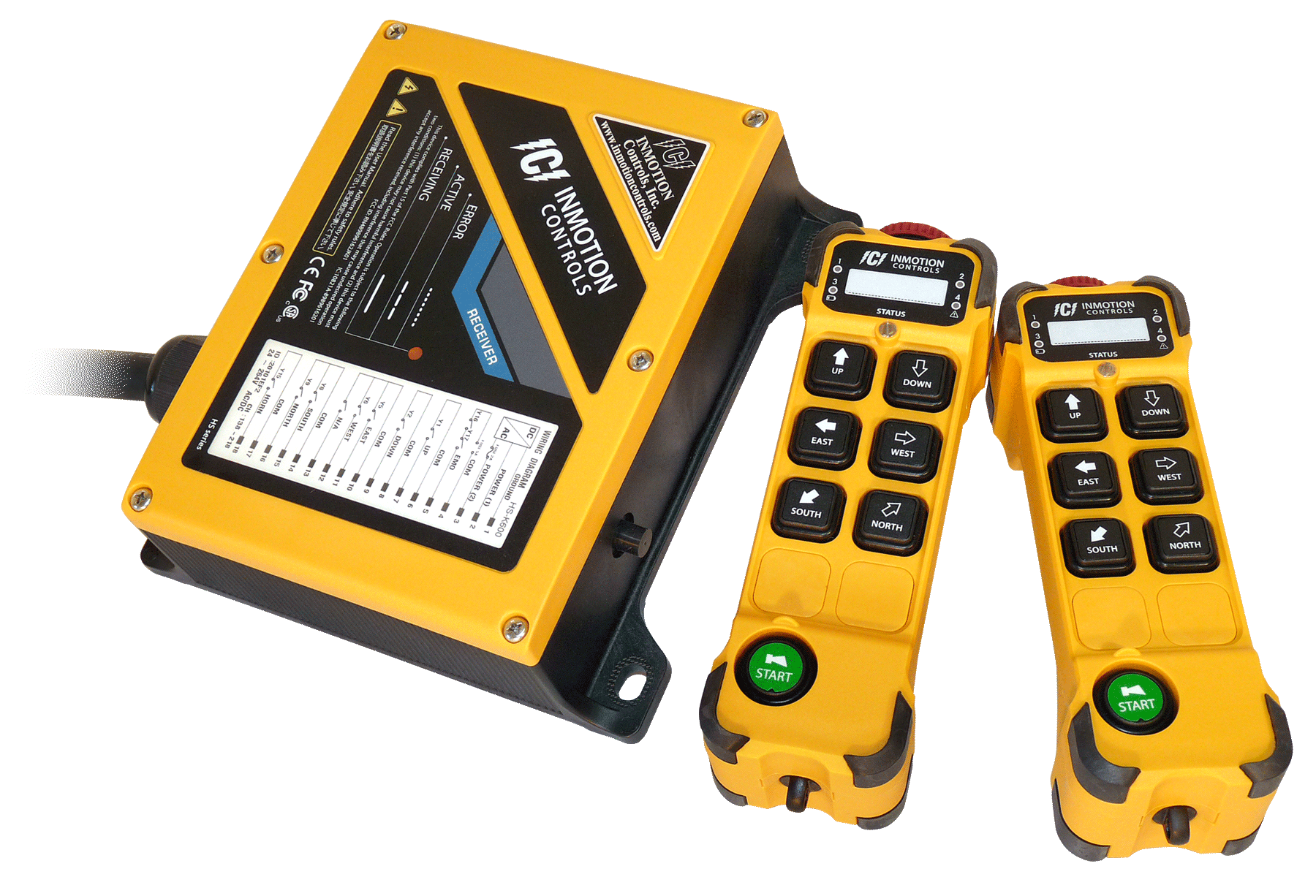

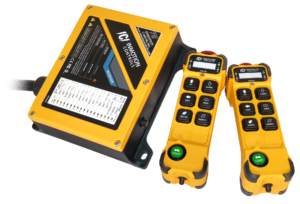

The K600 SYSTEM is a 3 motion, 1 step control solution for multi-function equipment or bridge, hoist and trolley applications.
Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

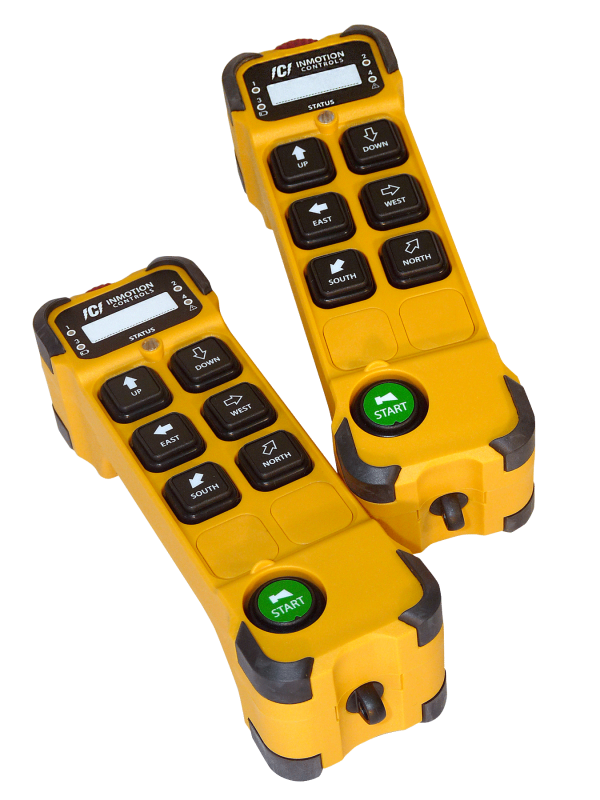

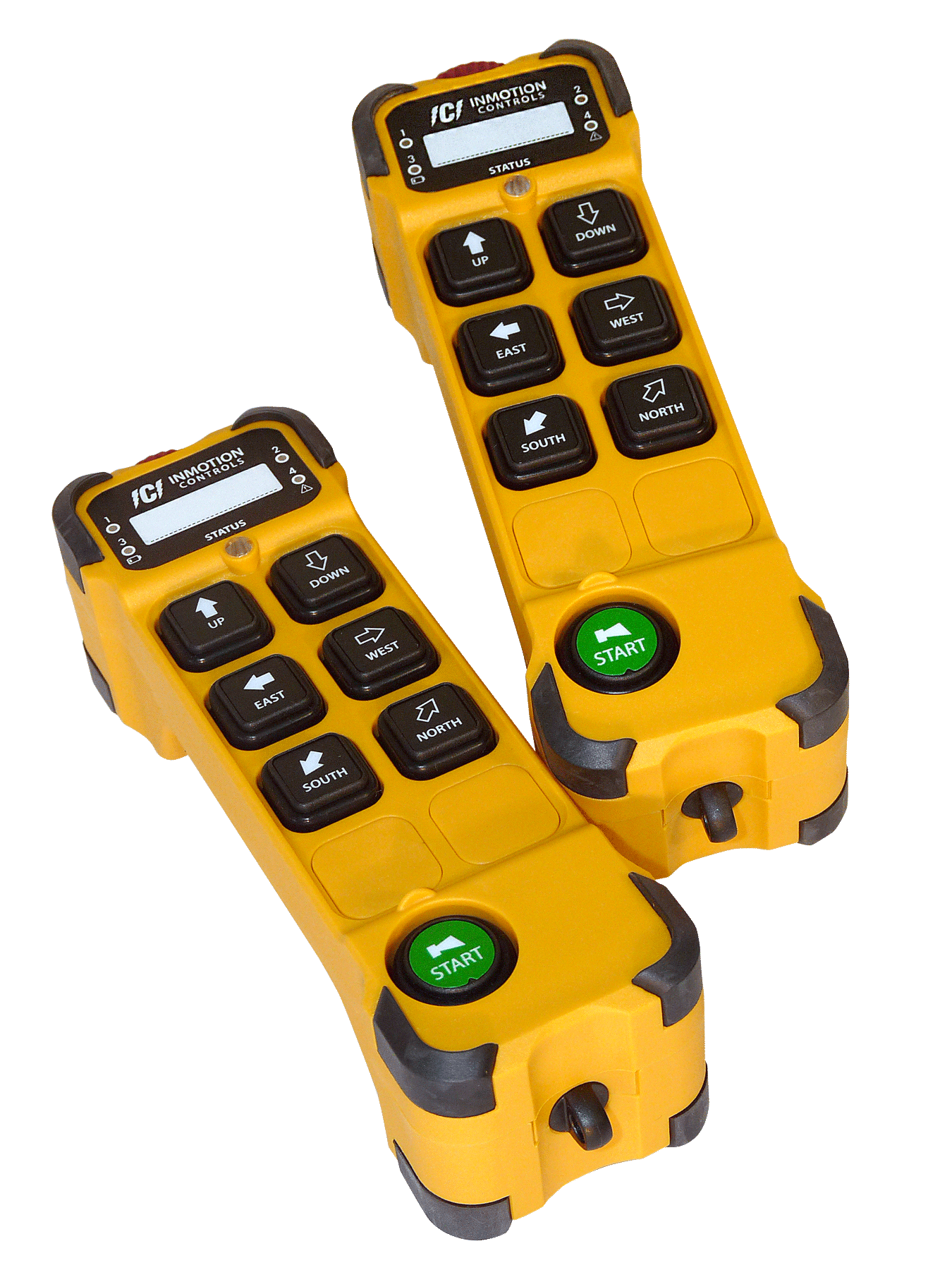

| TRANSMITTER (K200 – K600) | |
|---|---|
| Frequency | 433MHz |
| Modulation Method | 4 FSK |
| Typical Operating Range | 300 ft. (100M) |
| Power Supply | 2 X 1.5V “AA” Battery |
| Average Power Consumption | 16mA @ 3VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 193mm X 57mm X 51mm |

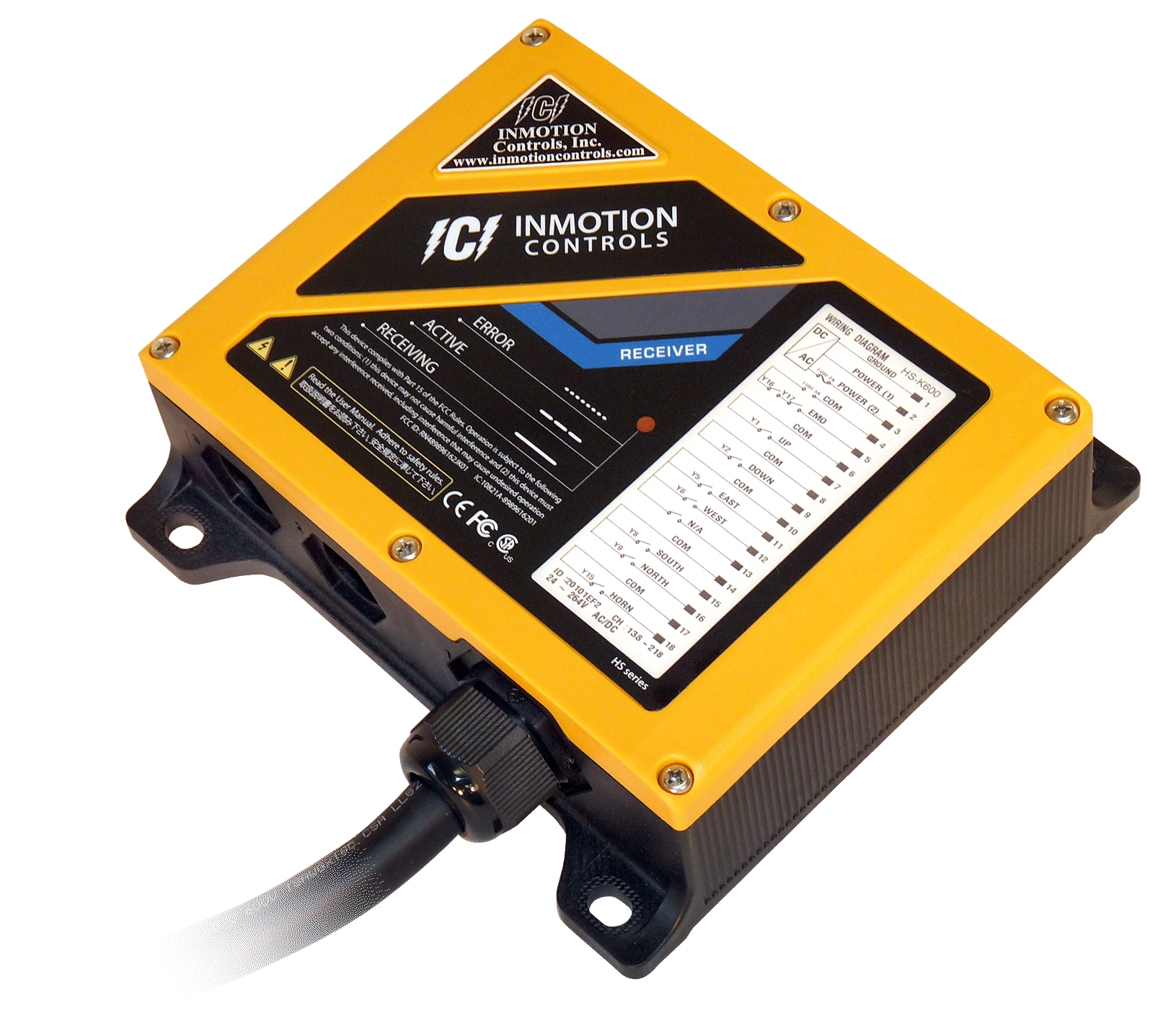

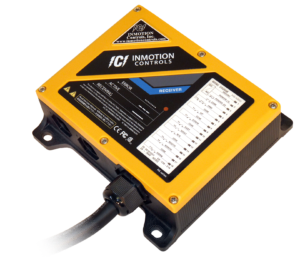

| RECEIVING UNIT (K200 – K600) | |
|---|---|
| Frequency | 433MHz |
| Control System | PLL |
| Power Supply | 24 – 240 VAC / 24 - 160 VDC (auto-sensing) |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 190mm X 184mm X 64mm |
| Installation and Mounting | Single Bolt |
