K Plus Series K200 Plus System

The K200-PLUS SYSTEM is a 1 motion, 1 step control solution for a single function control or monorail hoist applications.

Complies with UL 61010-1 and CSA C22.2
“Qi” Wireless Charging (transmitter)
G-Force Shock Detection with Disable
Operating Voltage 24 – 240 VAC / 24 – 160 VDC
NiMH Transmitter Batteries Included
900MHz FCC, IC and CE Compliant
IP 65, PA6 Nylon – 30% Glass Filled Enclosure

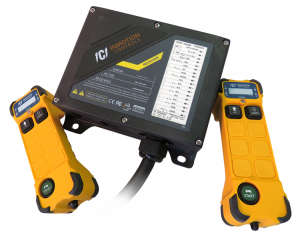

Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

Description
Accessories
Documentation

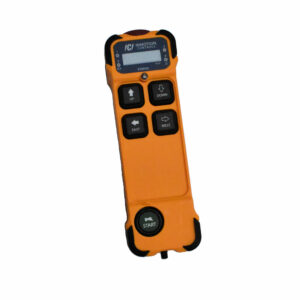

TRANSMITTER (K200- K600 PLUS)
Frequency	902.5 – 927.5 MHz
Modulation Method	2GFSK
Typical Operating Range	300 feet (100 Meters)
Power Supply	2 X 1.5V NiMH “AA” Battery
Average Power Consumption	38mA @ 2.5VDC
Operating Temperature	-40F to + 149F
Protection Degree	IP65
Housing Material	PA6 (30% Glass Filled)
Overall Dimension	193mm x 57mm x 51mm

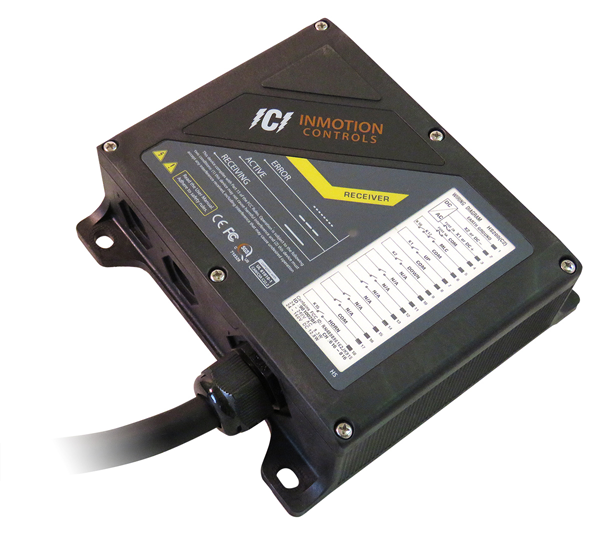

RECEIVING UNIT (K200- K600 PLUS)
Frequency	902.5 – 927.5 MHz
Control System	PLL
Power Supply	24 – 240 VAC / 24 – 160 VDC (auto-sensing)
Operating Temperature	-40F to + 149F
Protection Degree	IP65
Housing Material	PA6 (30% Glass Filled)
Overall Dimensions	190mm x 184mm x 64mm
Installation and Mounting	Single Bolt
