K Plus Series K1212 Plus System

The K1212 PLUS SYSTEM is a 6 motion, 2 step control solution for a multi-function control or bridge, hoist and trolley applications requiring additional multi-speed outputs.

  • Complies with UL 61010-1 and CSA C22.2
  • “Qi” Wireless Charging (transmitter)
  • G-Force Shock Detection with Disable
  • Operating Voltage 90 – 240 VAC / 90 – 160 VDC
  • NiMH Transmitter Batteries Included
  • 900MHz FCC, IC and CE Compliant
  • IP 65, PA6 Nylon – 30% Glass Filled Enclosure

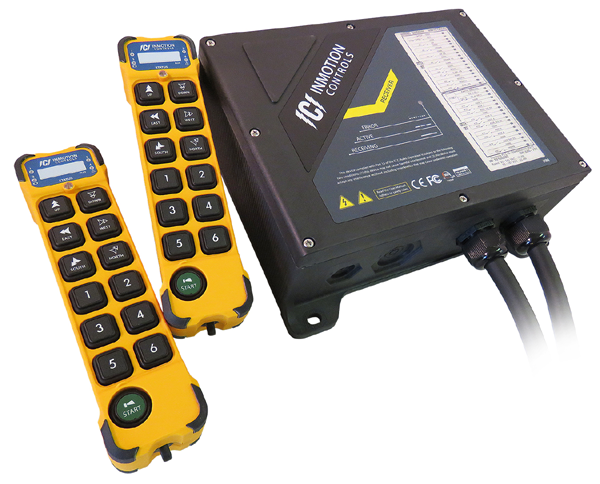

Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

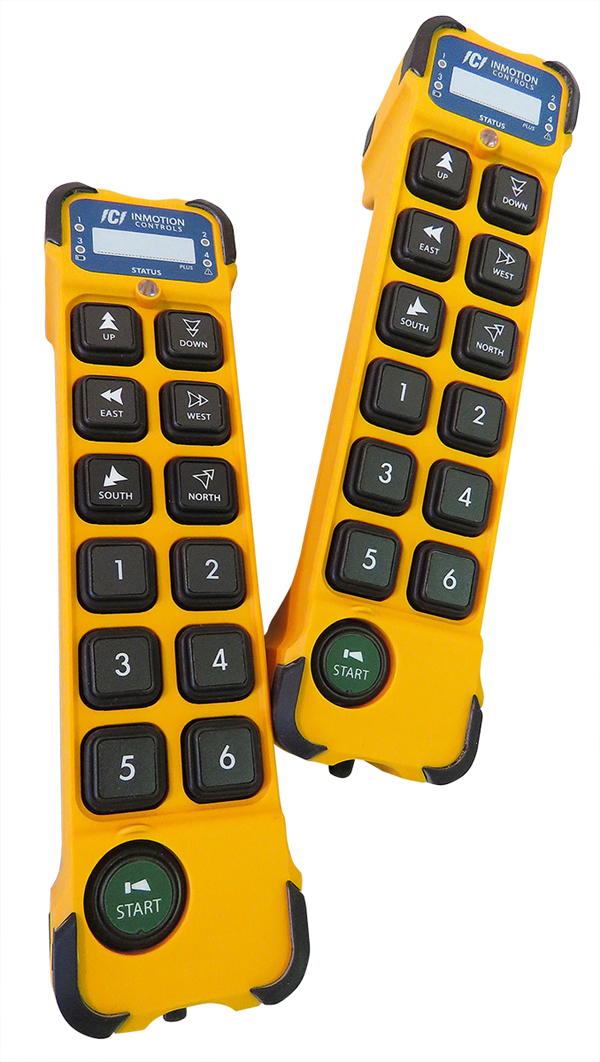

TRANSMITTER (K1010-K1212 PLUS)
Frequency 902.5 – 927.5 MHz
Modulation Method 2GFSK
Typical Operating Range 300 feet (100 Meters)
Power Supply 2 X 1.5V NiMH “AA” Battery
Average Power Consumption 38mA @ 2.5VDC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimension 230mm x 57mm x 51mm

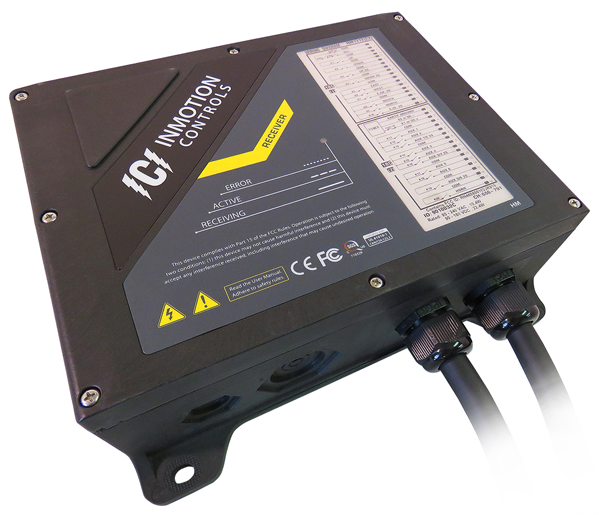

RECEIVING UNIT (K1010-K1212 PLUS)
Frequency 902.5 – 927.5 MHz
Control System PLL
Power Supply 90 ~ 240 VAC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimensions 272mm x 260mm x 96mm
Installation and Mounting Single Bolt
