K Plus Series K606 R Full Variable System
The K606 Full Variable System is a 3 motion, full variable control solution for multi-function control or bridge, hoist and trolley applications.
- Complies with UL 61010-1 and CSA C22.2
- “Qi” Wireless Charging (transmitter)
- G-Force Shock Detection with Disable
- Operating Voltage 24 – 240 VAC / 24 – 160 VDC
- NiMH Transmitter Batteries Included
- 900MHz FCC, IC and CE Compliant
- IP 65, PA6 Nylon – 30% Glass Filled Enclosure
Each system includes one receiving unit, one transmitter with legend set, batteries, Qi Charging pad, lanyard, mounting hardware and installation instructions.

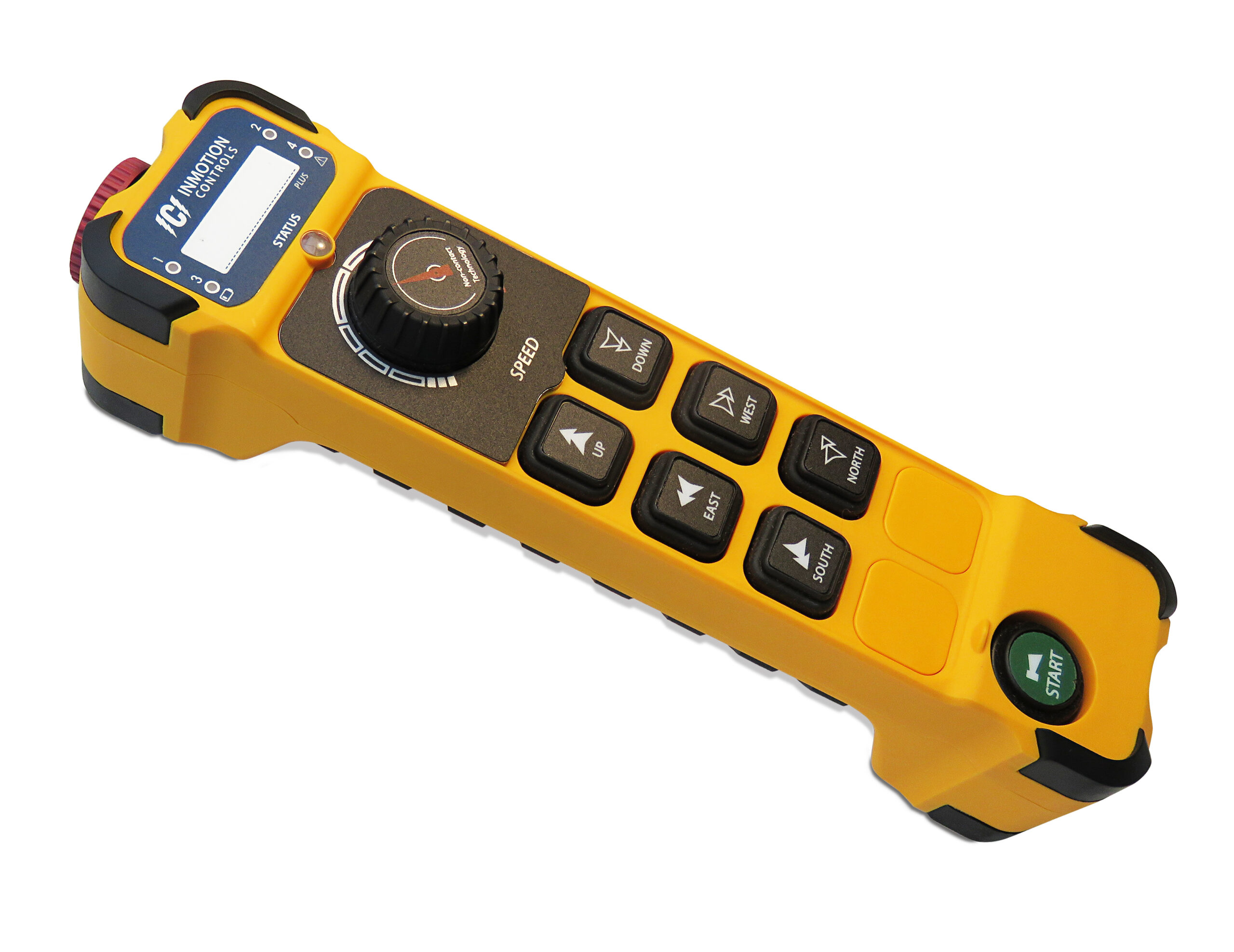

TRANSMITTER (K606 Full Variable) | |
---|---|
Frequency | 902.5 – 927.5 MHz |
Modulation Method | 2GFSK |
Typical Operating Range | 300 feet (100 Meters) |
Power Supply | 2 X 1.5V NiMH “AA” Battery |
Average Power Consumption | 38mA @ 2.5VDC |
Operating Temperature | -40F to +149F |
Protection Degree | IP65 |
Housing Material | PA6 (30% Glass Filled) |
Overall Dimension | 9.06”×2.25”×2.00” |

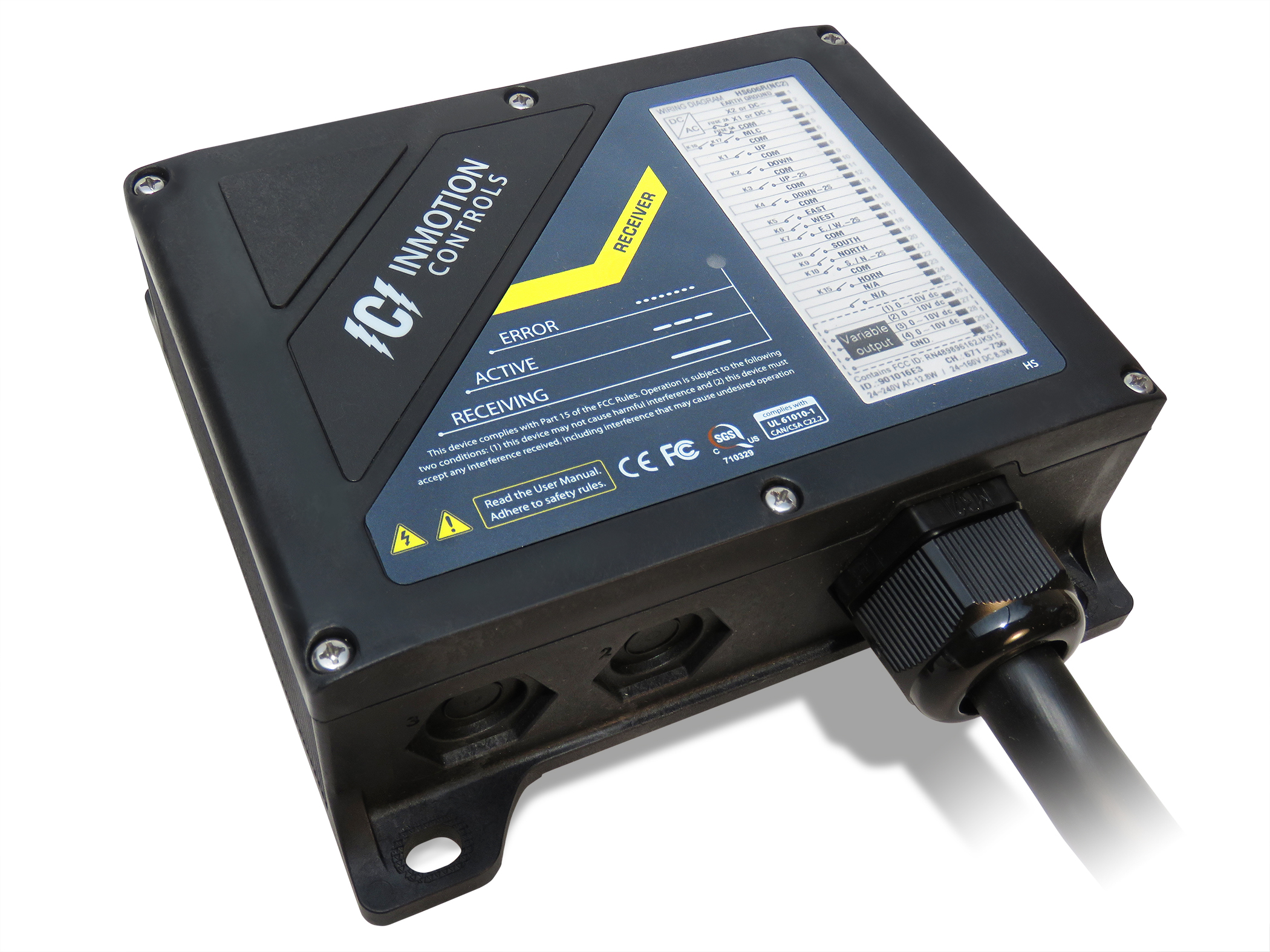

RECEIVING UNIT (K606 Full Variable) | |
---|---|
Frequency | 902.5 – 927.5 MHz |
Control System | PLL |
Power Supply | 24 ~ 240 VAC / 24 ~ 160 VDC (auto-sensing) |
Operating Temperature | -40F to + 149F |
Protection Degree | IP65 |
Housing Material | PA6 (30% Glass Filled) |
Overall Dimensions | 7.46" x 7.22” x 2.52” |
Installation and Mounting | Single Bolt |
