K Plus Series K404 R Full Variable System
The K404 Full Variable System is a 2 motion, Full Variable control solution for dual function control or monorail hoist and trolley applications.
- Complies with UL 61010-1 and CSA C22.2
- “Qi” Wireless Charging (transmitter)
- G-Force Shock Detection with Disable
- Operating Voltage 24 – 240 VAC / 24 – 160 VDC
- NiMH Transmitter Batteries Included
- 900MHz FCC, IC and CE Compliant
- IP 65, PA6 Nylon – 30% Glass Filled Enclosure
Each system includes one receiving unit, one transmitter with legend set, batteries, QI Charging pad, lanyard, mounting hardware and installation instructions.

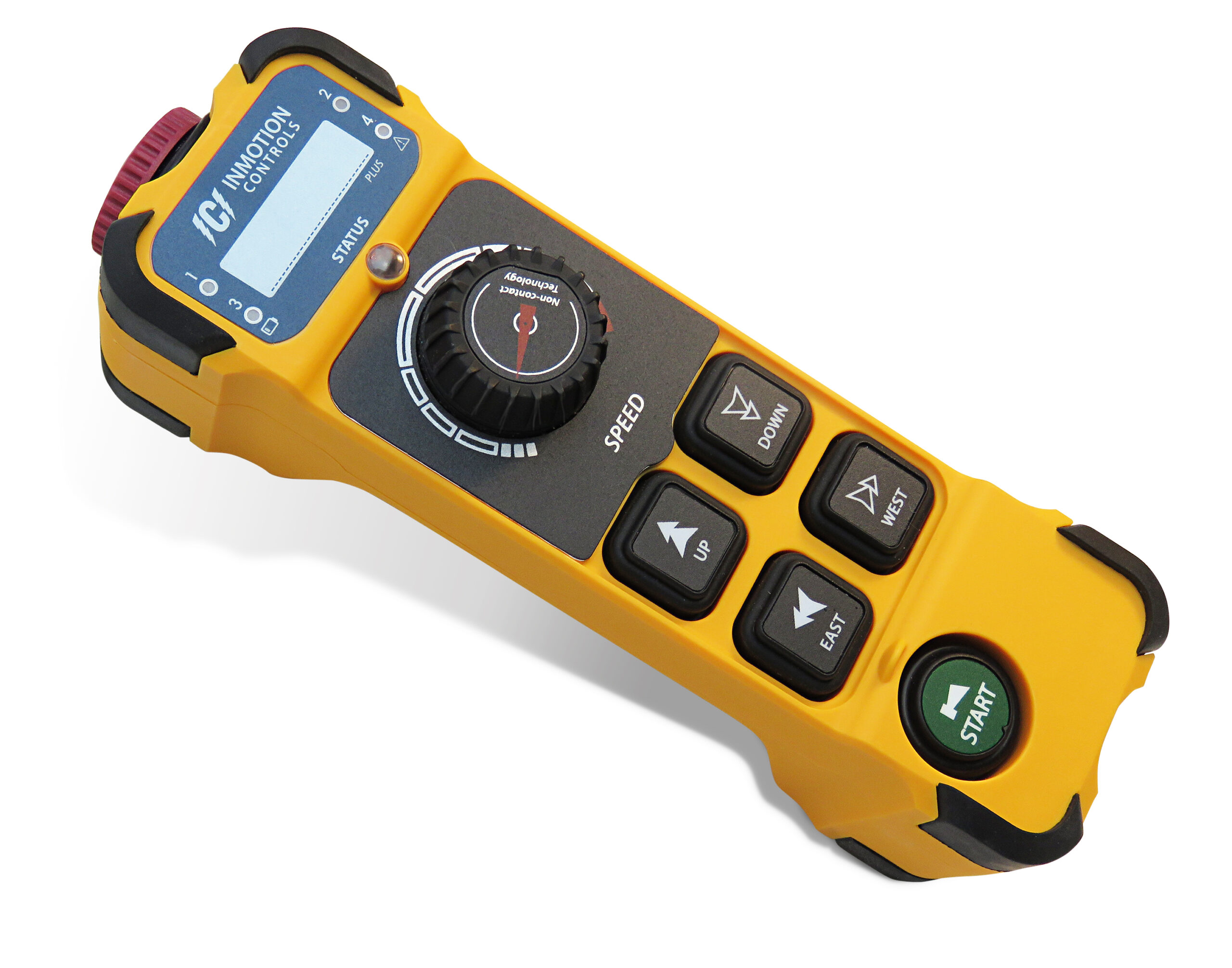

| TRANSMITTER (K404 Full Variable) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Modulation Method | 2GFSK |
| Typical Operating Range | 300 feet (100 Meters) |
| Power Supply | 2 X 1.5V NiMH “AA” Battery |
| Average Power Consumption | 38mA @ 2.5VDC |
| Operating Temperature | -40F to +149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 7.63”×2.25”×2.00” |
| RECEIVING UNIT (K404 Full Variable) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Control System | PLL |
| Power Supply | 24 ~ 240 VAC / 24 ~ 160 VDC (auto-sensing) |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 7.46" x 7.22” x 2.52” |
| Installation and Mounting | Single Bolt |
