K Series HV-K200-SYSTEM
The HV-K200 SYSTEM is a 1 motion, 1 step control solution for specialized equipment.

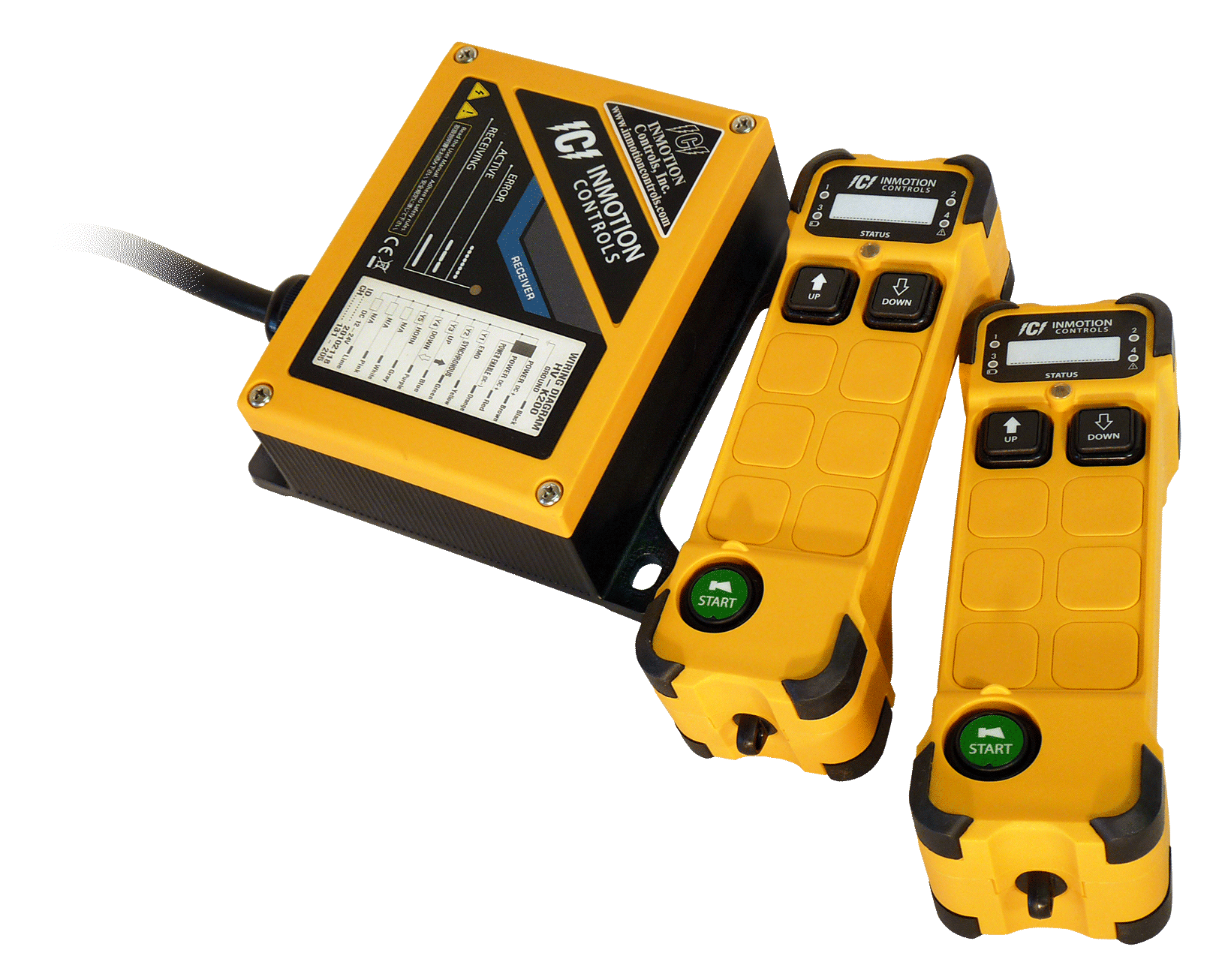

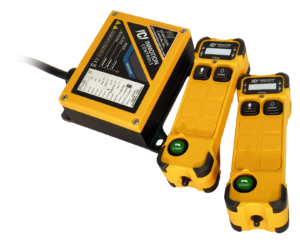

Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

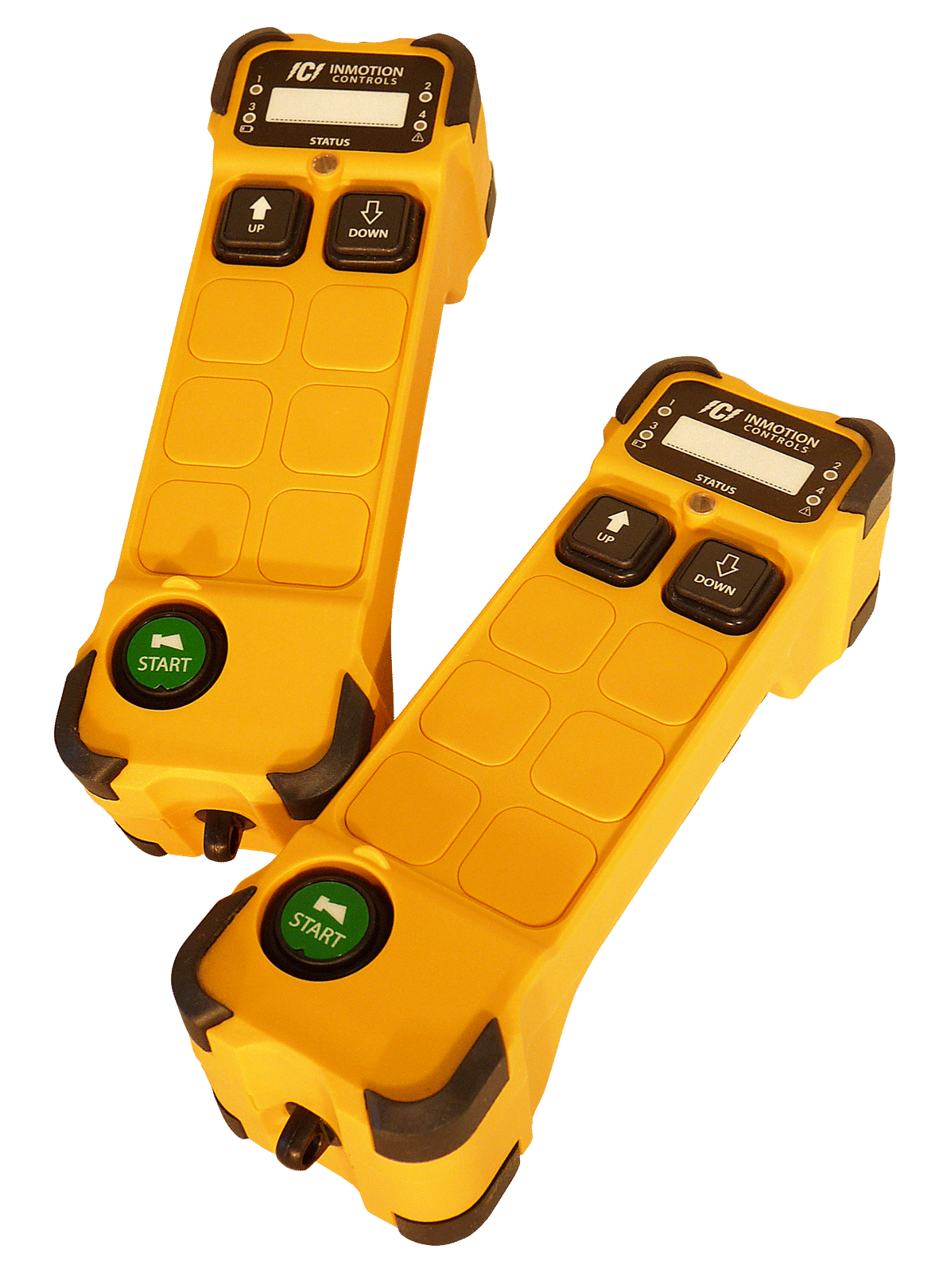

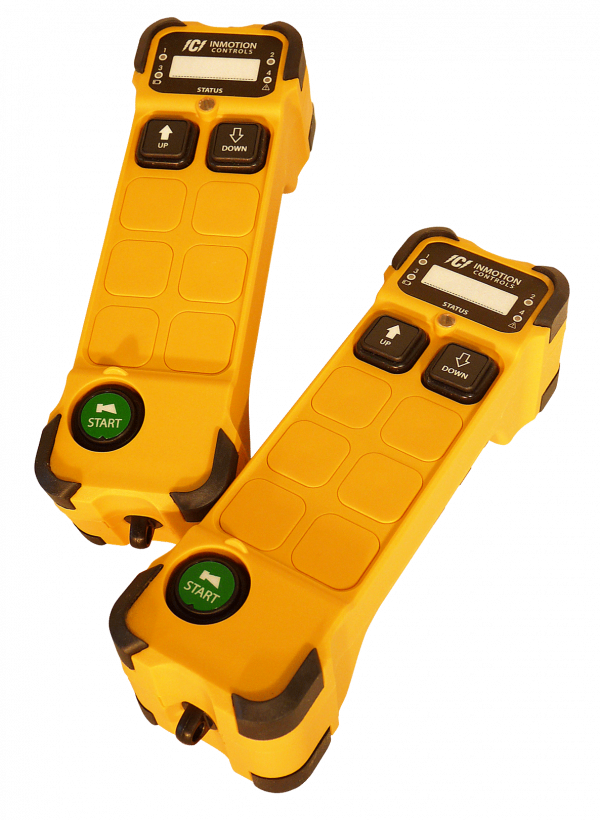

| TRANSMITTER (K200 – K600) | |
|---|---|
| Frequency | 433MHz |
| Modulation Method | 4 FSK |
| Typical Operating Range | 300 ft. (100M) |
| Power Supply | 2 X 1.5V “AA” Battery |
| Average Power Consumption | 16mA @ 3VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 193mm X 57mm X 51mm |

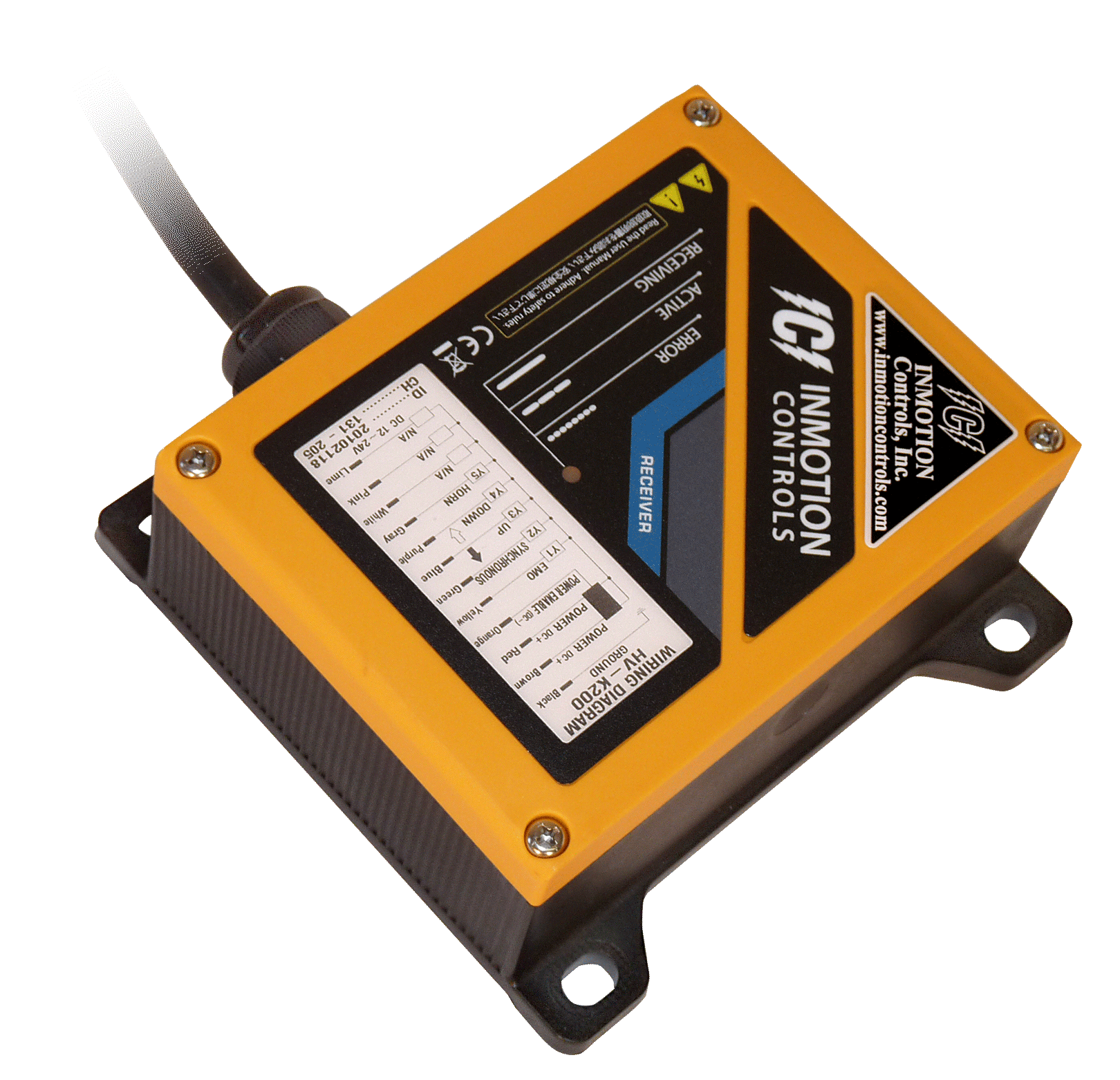

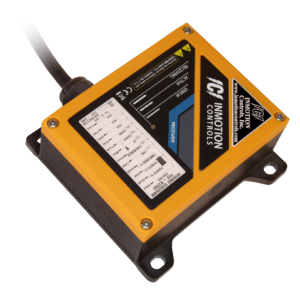

| RECEIVING UNIT (HV-K200 – HV-K400) | |
|---|---|
| Frequency | 433MHz |
| Control System | PLL |
| Power Supply | 12 – 24 VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 142mm X 141mm X 58.5mm |
| MOSFET Maximum Current | 7.5 Amp (DC) |
Accessories
These accessories are available for purchase:
