Classic Series 1210-SYSTEM

1210-SYSTEM-0

1210-SYSTEM-111

1210-SYSTEM-113

The 1210 SYSTEM is a handheld 5 motion, 2 step control solution for a multiple function control for crane hoist, trolley and bridge applications.

Safety Emergency Off and Sealed Start Button
Up to 5 Auxiliary Function Switches
Momentary Start and Horn Button
Advanced RF with Over 4.1 Billion ID Codes

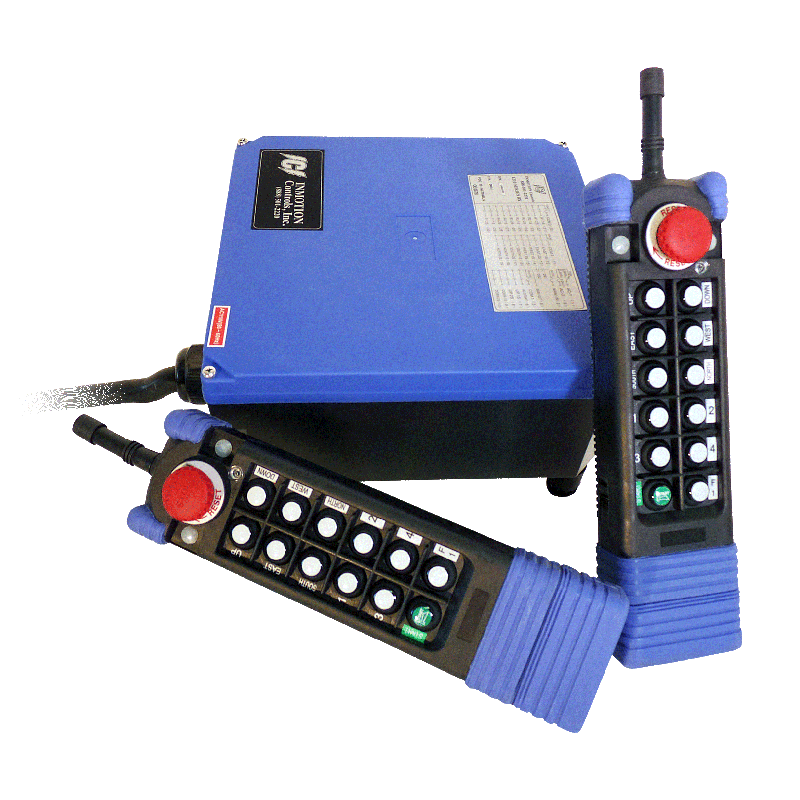

Each system includes one receiving unit, two transmitters with lanyard, batteries, mounting hardware and installation instructions.

Description
Accessories
Documentation

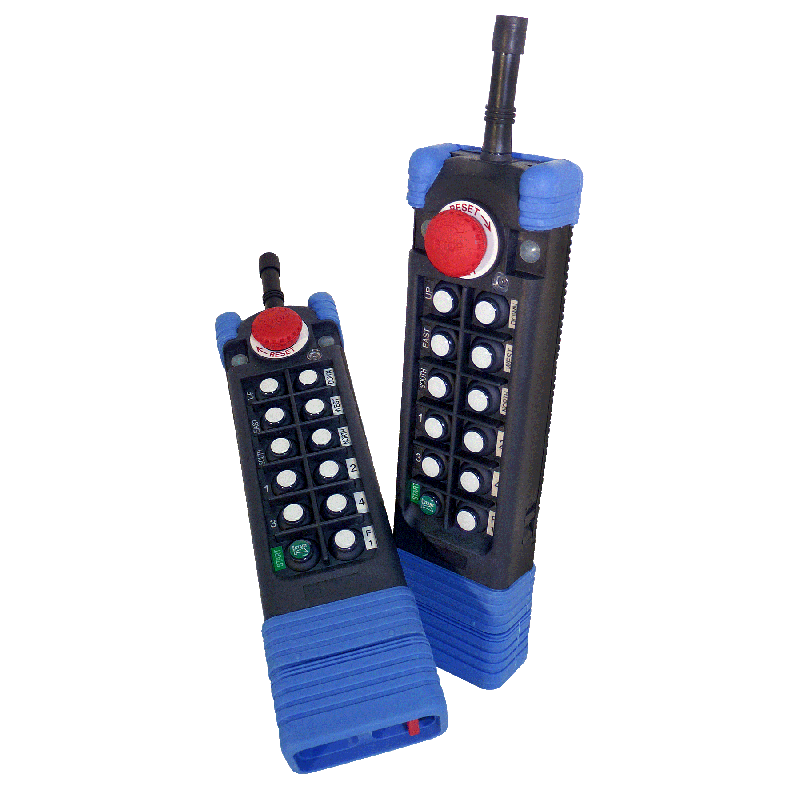

TRANSMITTER (1210)
Frequency	310 MHz
Modulation Method	4 FSK
Typical Operating Range	300 ft. (100M)
Power Supply	2 X 1.5V “AA” Battery
Average Power Consumption	45mA Average
Operating Temperature	-22F to + 167F
Protection Degree	IP65
Housing Material	Fiberglass / ABS
Overall Dimension	10.79 x 3.03 x 1.65 Inches

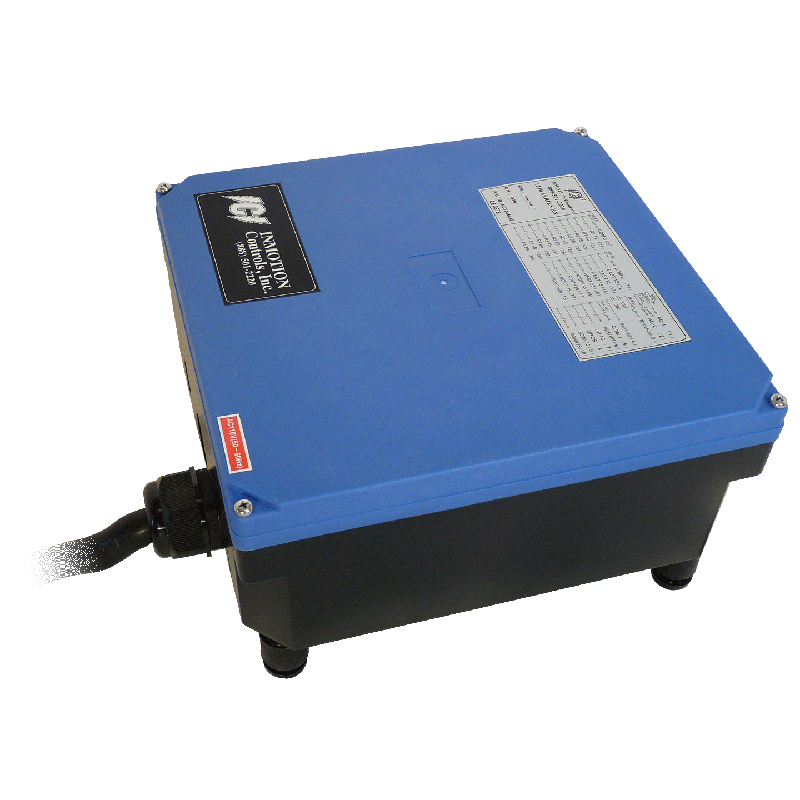

RECEIVING UNIT (1210)
Frequency	310 MHz
Control System	Crystal
Power Supply	110 ~120 VAC (Standard) 12/24/48/220 (Optional)
Operating Temperature	-22F to + 167F
Protection Degree	IP65
Housing Material	Fiberglass / ABS
Overall Dimensions	9.96 x 10.51 x 5.91 Inches
Installation and Mounting	Single Bolt

Accessories

These accessories are available for purchase:

Documentation
